If you’ve ever wondered what’s actually inside an LED luminaire, you’re not alone. We often talk about lumens, wattage, or color temperature—but what about the actual components that make LED luminaires work so efficiently?
In this guide, I’ll walk you through the main parts of an LED luminaire, explain what they do, and why each one matters. Whether you’re sourcing LED products or just curious, understanding the anatomy of a luminaire can help you make smarter lighting choices.
What Is LED Lighting?
Before diving into the components, let’s clear up what LED lighting actually is.
LED stands for Light Emitting Diode. It’s a semiconductor device that emits light when an electric current passes through it. Unlike traditional incandescent bulbs that generate light (and heat) by burning a filament, LEDs produce light through electroluminescence—a far more energy-efficient process.
Why is LED lighting better?
- ✅ Consumes less energy than incandescent or fluorescent lighting
- ✅ Lasts significantly longer (often 25,000–50,000 hours or more)
- ✅ Produces minimal heat, making it safer and cooler to operate
- ✅ Available in a wide range of color temperatures and styles
- ✅ Eco-friendly, with no mercury or harmful UV radiation
Thanks to these advantages, LED lighting has become the go-to choice for residential, commercial, and industrial applications alike. Whether you’re installing recessed ceiling lights, wall sconces, or high-bay warehouse fixtures, LED is now the gold standard in modern lighting.
How Do LED Lamps Work?
LED lamps work based on a fascinating yet simple principle: electroluminescence. When an electric current passes through a semiconductor material (the diode), it releases energy in the form of light.
Here’s a quick breakdown of how it happens:
- Electricity flows into the LED driver.
- The driver regulates and converts the power to match the LED chip’s voltage needs.
- The electric current then flows through the semiconductor junction inside the LED chip.
- Electrons collide with “holes” in the diode material, releasing energy as visible light.
Unlike traditional bulbs, there’s no filament to burn out, no gases to ignite, and far less wasted energy in the form of heat.
Key Advantages of This Process:
- High efficiency: Converts most energy into light instead of heat
- Fast response: LEDs light up instantly with no warm-up time
- Long life: Minimal material degradation over time
- Durability: Solid-state design means no fragile glass or moving parts
This is what makes LED lamps such a game-changer in lighting technology—from home desk lamps to industrial floodlights.

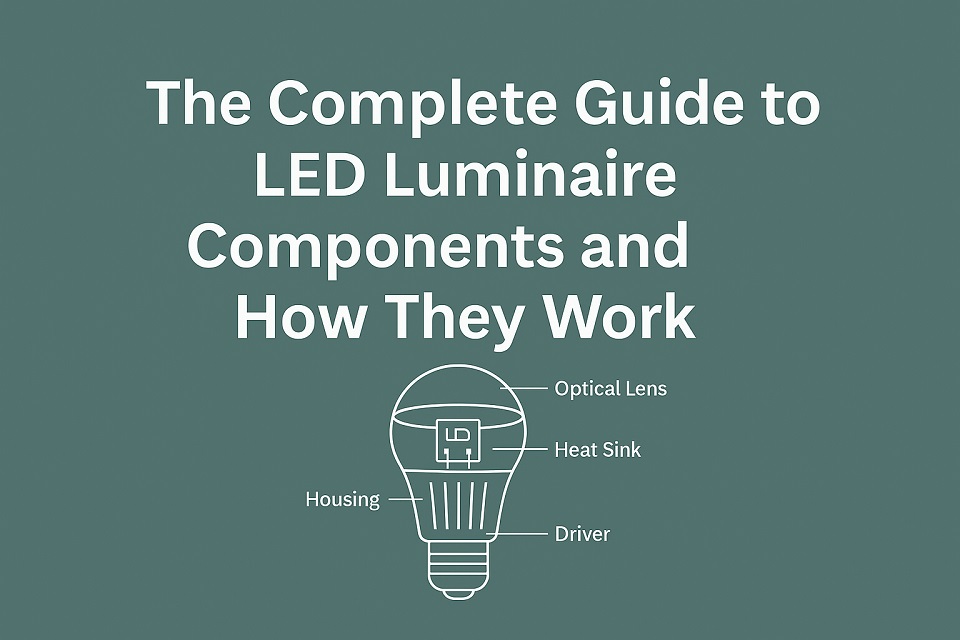

What Makes Up an LED Luminaire?
LED Luminaire Components
| Component | Function |
|---|---|
| LED Source | Emits the light |
| LED Driver | Regulates power input |
| Heat Sink | Keeps temperature low |
| Optical Lens | Shapes and directs the beam |
| Housing | Protects and supports all components |
| PCB | Electrically connects LED chips |
| Control Interface | Adds smart functionality (optional) |
1. LED Light Source (The Heart)
At the center of every LED luminaire is, of course, the LED light source. This could be in the form of:
- SMD (Surface-Mounted Device) LEDs
- COB (Chip-on-Board) LEDs
- LED Modules
Each type offers different benefits. SMDs are great for directional light and flexibility, while COBs offer better thermal performance and higher brightness in a compact size.
💡 Pro Tip: Look for LEDs with high CRI (Color Rendering Index) if you care about accurate color in your space.
2. LED Driver (The Power Manager)
LEDs can’t run directly off of standard AC power—they need a driver to convert voltage and regulate current.
Why it matters:
- It controls how much power your LEDs get
- Protects against voltage spikes
- Helps ensure long lifespan
There are constant current drivers and constant voltage drivers—and choosing the right one depends on your LED setup.
3. Heat Sink (The Cooling System)
LEDs don’t get as hot as traditional bulbs, but they still produce heat. That’s where the heat sink comes in.
Its role:
- Absorbs and dissipates heat
- Prevents overheating
- Helps maintain brightness and lifespan
Most heat sinks are made of aluminum, thanks to its excellent thermal conductivity. You’ll often see them in finned or ribbed shapes for better airflow.
4. Optical Lens or Reflector (The Light Shaper)
Ever notice how some LED luminaires have focused beams, while others cast soft, wide glows? That’s because of the optical design.
Types of optical elements:
- Lenses: Direct and shape the beam (common in spotlights)
- Diffusers: Soften and spread light evenly
- Reflectors: Redirect light efficiently
These parts are especially important in task lighting, commercial spaces, and accent fixtures where beam control matters.
5. Housing (The Body)
This is what holds everything together. The housing protects the internal components from dust, moisture, and impact.
Common materials:
- Aluminum (durable + good heat dissipation)
- Plastic (lightweight + cost-effective)
- Stainless steel or glass (for decorative or outdoor use)
Don’t overlook the IP rating! For wet or dusty environments, choose a housing with IP65 or higher.
6. PCB (Printed Circuit Board)
This is where the LEDs are mounted and electrically connected. A quality PCB ensures stable operation and effective heat transfer to the heat sink.
There are two types:
- FR-4 PCB (standard, lower cost)
- Aluminum PCB (better thermal performance)
7. Control Interface (Optional, but Powerful)
Modern LED luminaires may include control features like:
- Dimming (0–10V, DALI, TRIAC)
- Motion Sensors
- Daylight Harvesting
- Smart control via app or remote
This component makes your lighting adaptable, efficient, and often more energy-saving.
Why This Matters
Understanding the parts of an LED luminaire helps you:
- Choose better quality products
- Compare options more intelligently
- Troubleshoot issues more effectively
- Communicate clearly with suppliers or installers
Next time you look at a product spec sheet, you’ll know exactly what to look for—and what questions to ask.
Common Uses of LED Lamps
LED lamps have become incredibly versatile—and they’re now used in nearly every setting you can imagine. Thanks to their energy efficiency, compact size, and variety of styles, LED lighting applications range from home décor to industrial-scale operations.
🔹 Residential Lighting
- Ceiling lights, downlights, and pendant lamps
- Under-cabinet lighting in kitchens
- Reading lamps and bedside lights
- Smart bulbs that integrate with Alexa or Google Assistant
👉 Why LEDs? They help reduce electricity bills and offer longer-lasting brightness with customizable colors and dimming features.
🔹 Commercial & Office Spaces
- Panel lights in drop ceilings
- LED tube replacements for fluorescents
- Track lighting in retail stores
- Emergency lighting and exit signs
👉 Benefit: Reduced maintenance costs and better illumination for workspaces.
🔹 Outdoor & Street Lighting
- Floodlights for security
- Pathway and garden lights
- Street lamps and parking lot lighting
👉 Bonus: LED lamps withstand weather changes and offer better visibility without glare.
🔹 Industrial & Warehouse Lighting
- High bay and low bay lights for large spaces
- Explosion-proof LED fixtures for hazardous areas
- Motion sensor-controlled lights for energy saving
👉 Ideal for: Environments that demand long runtime and durability.
🔹 Automotive & Transportation
- Headlights, taillights, and indicators
- Interior car lighting
- Traffic signals and signs
👉 Why it works: Fast response time and longer lifespan than halogen bulbs.
Troubleshooting LED Lamps
Even though LED lamps are known for reliability, they’re not immune to occasional hiccups. Whether it’s flickering, dimming, or not turning on at all, here’s how I usually troubleshoot common LED issues.
🔧 1. LED Lamp Not Turning On
Possible causes:
- Faulty power supply or driver
- Loose connection in the socket
- Incorrect voltage or polarity (especially in low-voltage setups)
What to do:
- Check the wiring and make sure the LED is seated properly
- Test with a known working bulb
- Inspect the driver if it’s an integrated fixture
⚡ 2. Flickering LED Light
Causes may include:
- Incompatible dimmer switches
- Fluctuating power supply
- Low-quality or aging drivers
Solution:
- Use only LED-compatible dimmer switches
- Consider replacing the driver
- Check for loose wiring connections
🌡️ 3. LED Getting Too Hot
Yes, LEDs run cooler than incandescent bulbs—but bad heat dissipation can still cause damage.
Look for:
- No visible heat sink
- Enclosed fixtures with poor ventilation
Fix:
- Use LEDs specifically rated for enclosed spaces
- Upgrade to bulbs with integrated aluminum heat sinks
🕒 4. LED Light Dimming Over Time
This could mean:
- The LED chip is reaching the end of its lifespan
- Driver degradation
- Dust or lens discoloration affecting output
Tip: Always buy from reputable brands and check the rated hours and warranty.
🔁 5. Intermittent On/Off Cycling
Most common in:
- Motion sensor lights
- Overheated drivers
- Loose power connections
What helps:
- Check motion sensor range and sensitivity
- Replace faulty drivers
- Reconnect wires securely
Final Thoughts
LED luminaires are more than just light fixtures—they’re smart, efficient lighting systems that are built to last. Knowing what goes into one (and how it works) helps you make smarter decisions, whether you’re buying, installing, or troubleshooting.
So next time you’re shopping for lighting, you’ll know what terms like “COB chip,” “IP rating,” or “constant current driver” actually mean—and you’ll pick a product that fits your needs perfectly.
Looking for high-quality LED solutions? Make sure you choose products with well-designed components and reliable performance. Your future self (and your electric bill) will thank you.
